Description

• Range: Selectric OXI-GOLD Audio, Visual & Digital Accessories

• Link up to 3 additional TV sets

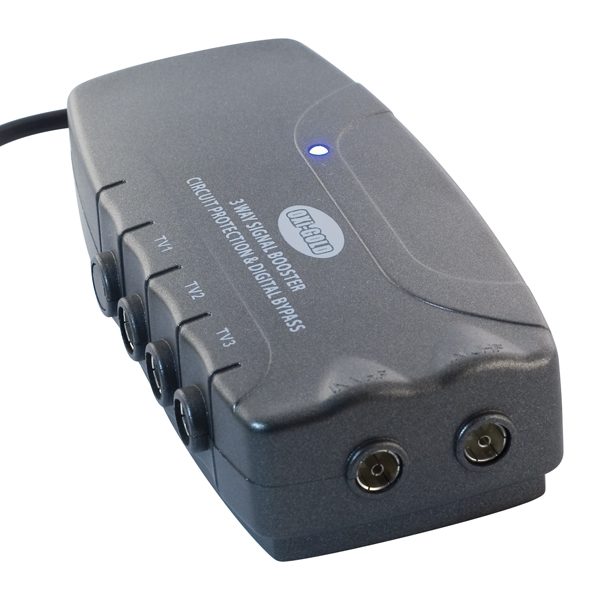

• The OXi-GOLD range of Digital By-Pass & Circuit Protected Boosters / Amplifiers are designed to ensure the transfer of superior digital quality signals between all your home entertainment systems.

Unlike many boosters / amplifiers, OXi-GOLD amplifiers have an integrated by-pass designed to allow the user to control SKY™ digital receivers from a second TV without additional equipment apart from a Link device and a SKY™ or compatible universal remote control.

• For added safety the OXi-GOLD range has built-in short circuit protection on each individual output. Should a short circuit be detected the OXi-GOLD range of boosters/amplifiers will only shut down that output with the short circuit; the other outputs will continue to function as normal.

• Frequency –

UHF: 470-860MHz  •  VHF: 47-230MHz  •  FM: 88-108MHz

• Gain: 9-12dB per port

• 220V/240V – AC~50Hz

• Dimensions: 177mm (W) x 85mm (H) x 46mm (D)

• Can be wall mounted

• Included: Instructions & fixing kit

• Colour: Black

• Other versions available –

4 Way – Code: LG303

6 Way – Code: LG304

8 Way – Code: LG305

• Compliant with BS 3041-7, EN 55013, EN 55020 & EN 61000-3
